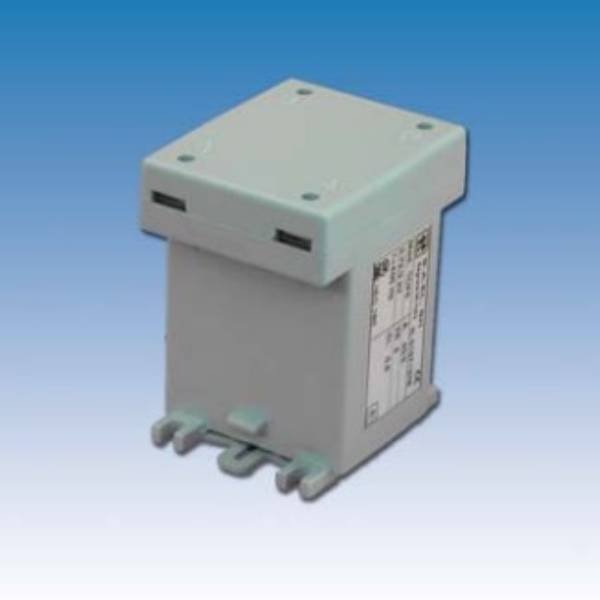

TVP3 Two-poles voltage transformers

To be connected between phases – Primary voltage up-to 600 V

Scheda tecnica prodotto

CHARACTERISTIC

  • Dry-insulating in air
  • Self-extinguishing thermoplastic material case, with
    fixing bracket and snap-on to rail DIN 35 mm
  • Integrated execution of the case and of secondary cover
  • Degree of protection for terminals: IP20, not lose screws
  • Frequency 50 ÷ 60 Hz
  • Rated secondary voltage 100 V
  • Rated voltage factor 1,2 continuous
  • Highest system voltage: 0,72 kV up to 600 V
  • One-minute test voltage between primary and secondary:
    3 kV up to 600 V
  • According to IEC 60044-2
