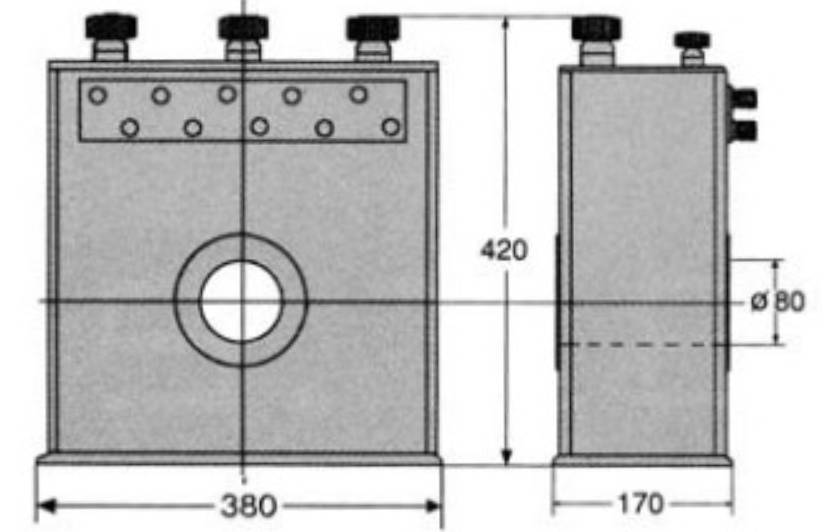

TCL3 – High accuracy current transformers

Current from 5 to 3000 A.



Scheda tecnica prodotto

CHARACTERISTIC

  • Dry-insulating in air
  • For indoor installation
  • Frequency 50 ÷ 60 Hz
  • Rated secondary current 5A
  • Highest system voltage 0.72 kV
  • One-minute power frequency test voltage 3 kV
  • According to CEI Standards and IEC Recommendations
  • Special executions
  • C.T. with different characteristics from that ones indicated
  • Rated secondary current 1A
  • Tropicalisation
