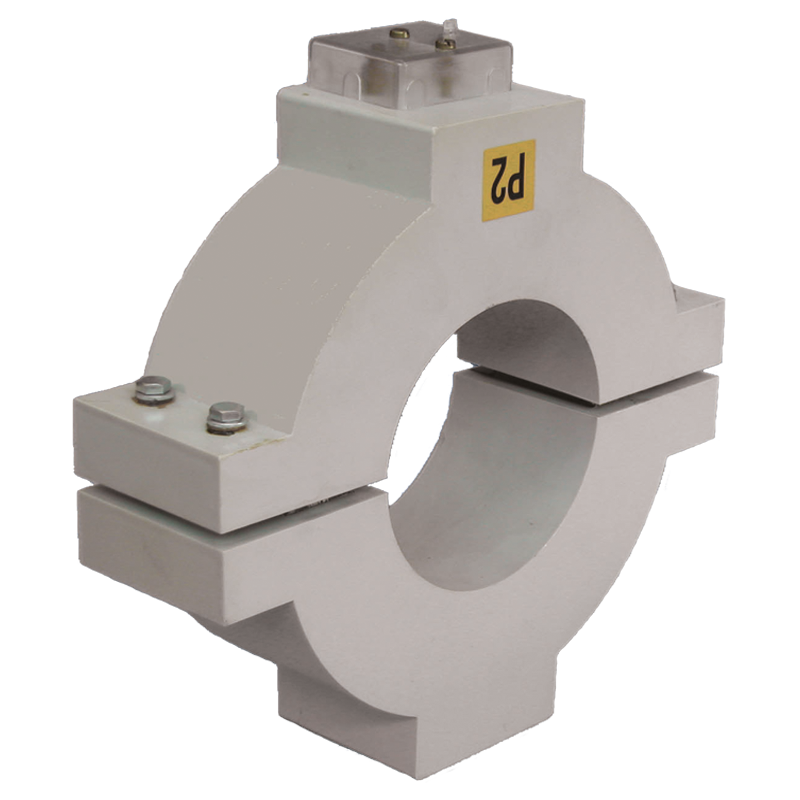

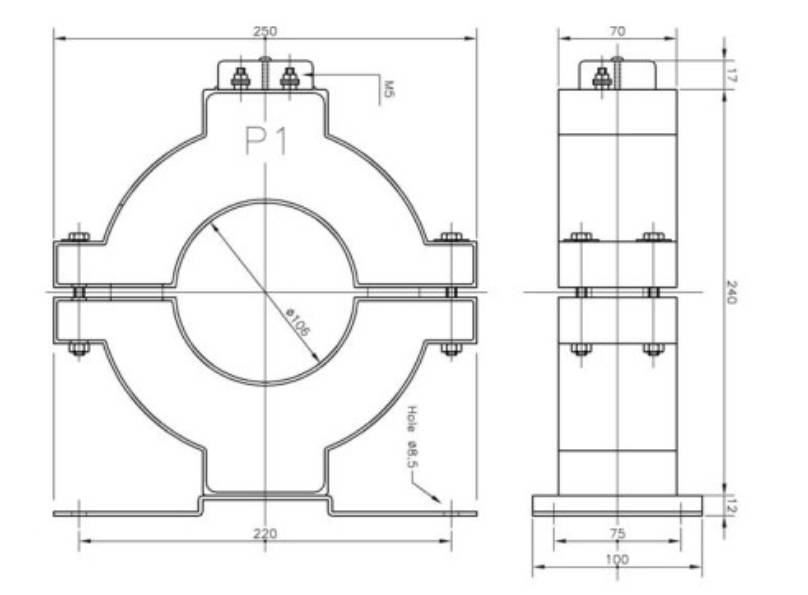

TCO 536 – A

CHARACTERISTIC

• Dry insulation, resin moulded
• Split-type core, for direct application on cable or bars
• Insulation to the primary conductor to be provided by the customer
• Highest system voltage 0.72 kV
• One-minute power frequency test voltage 3 kV
• Normal secondary rated current 5 A (on request 1 A)
• Frequency 50 – 60 Hz
• According to CEI Standards and IEC Recommendations
• On request, sealable cover on the secondary terminals
