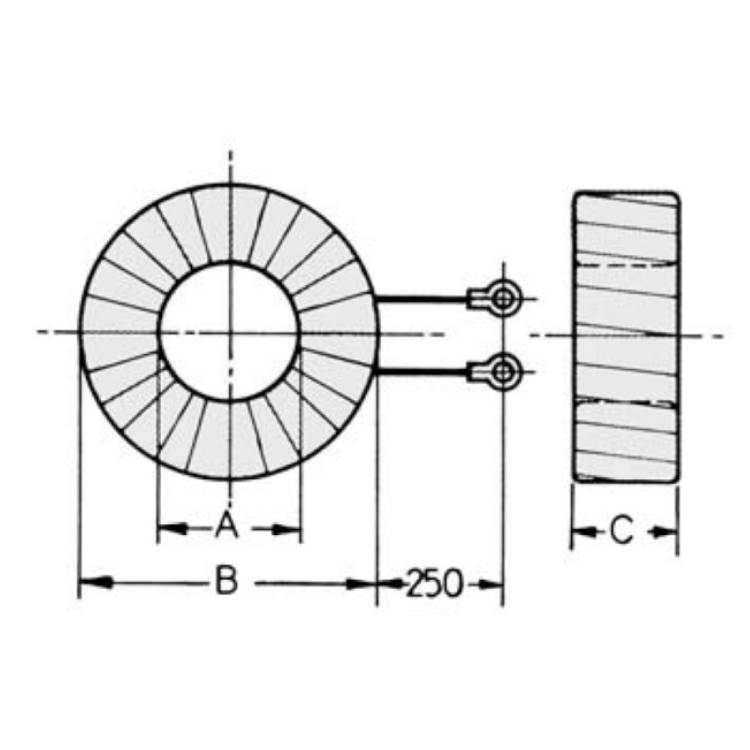

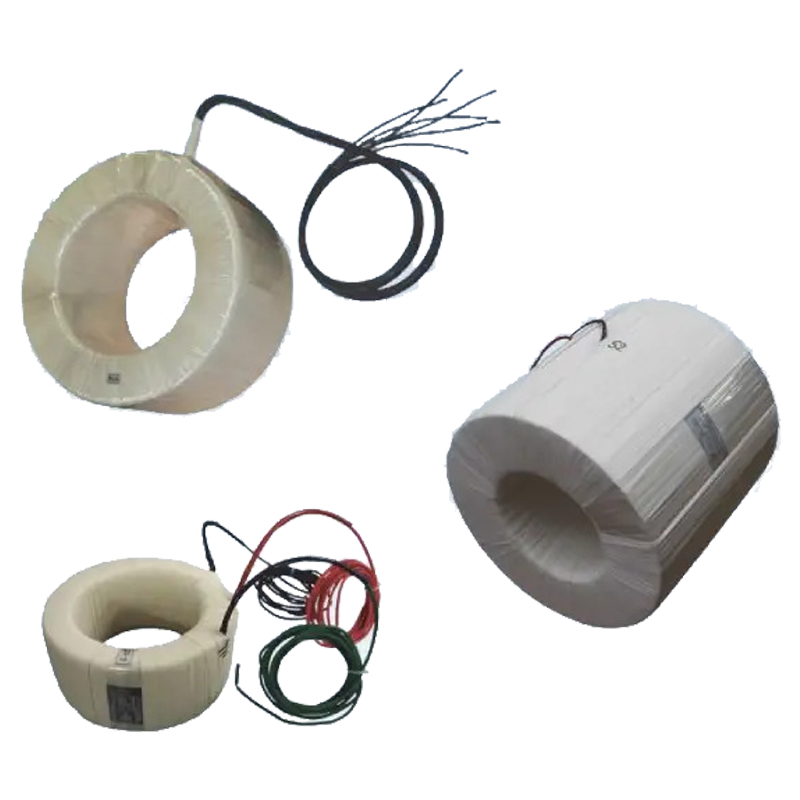

TCO – Ring-core current transformers

Primary current on request.

Scheda tecnica prodotto

CHARACTERISTIC

  • Dry-insulating in air
  • Ring core, to be mounted on bars or cables
  • Open execution, with flexible terminals or terminals box
  • Frequency 50 ÷ 60 Hz
  • Rated secondary current 5 A
  • Rated continuous thermal current 1.2 ln
  • Rated short-time thermal current 100 ln
  • Highest system voltage 0.72 kV
  • One-minute power frequency test voltage 3 kV
  • According to CEI Standard and IEC Recommendations
