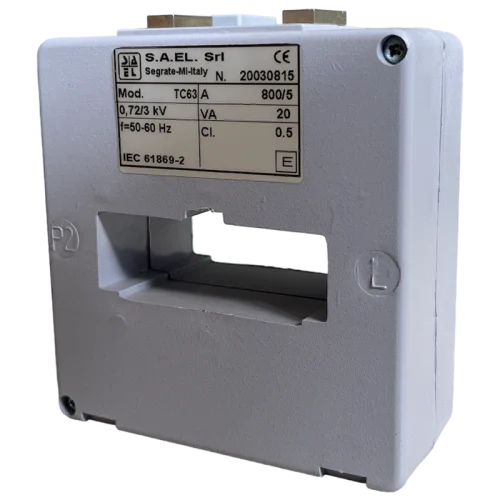

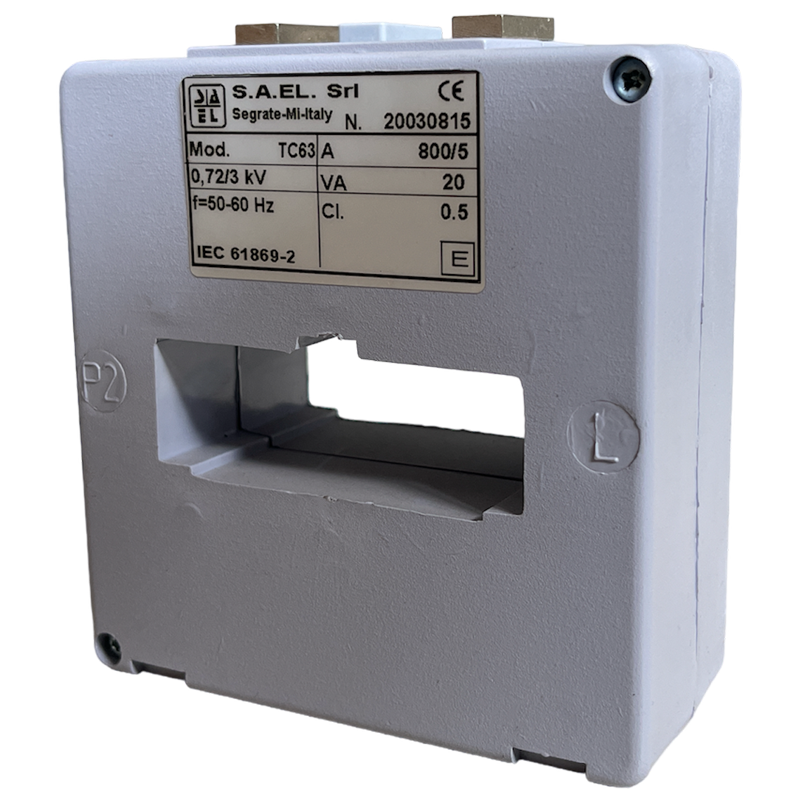

TC 63 – Current transformers without primary

Primary current 400 to 1500 A

Scheda tecnica prodotto

CHARACTERISTIC

  • Dry-insulating in air
  • Self-extinguishable material case, with fixing brackets
  • Frequency 50 ÷ 60 Hz
  • Rated secondary current 5 A
  • Rated short-time thermal current 100 ln
  • Highest system voltage 0.72 kV
  • One-minute power frequency test voltage 3 kV
  • According to CEI Standard and IEC Recommendations
