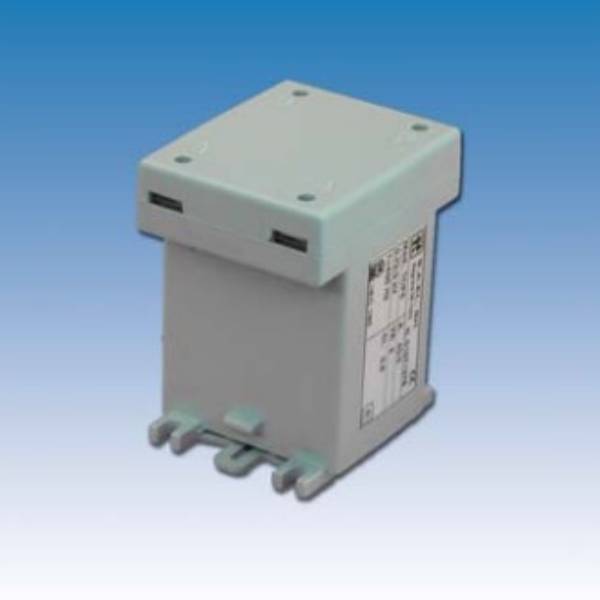

TVP3 Single-pole voltage transformers

To be connected between phase and earth – Primary voltage up-to 600 V/√3 V

Scheda tecnica prodotto

Dry-insulating in air

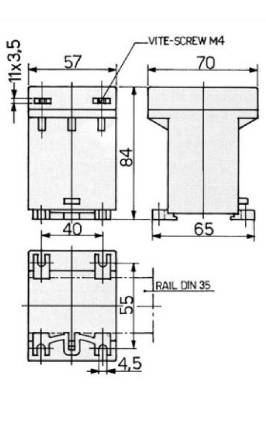

Self-extinguishing thermoplastic material case, with
fixing bracket and snap-on to rail DIN 35 mm
Integrated execution of the case and of secondary cover
Degree of protection for terminals: IP20, not lose screws
Frequency 50 ÷ 60 Hz
Rated secondary voltage 100/√3 V
Rated voltage factor 1,9/8 h
Highest system voltage: 0,72 kV up to 600/√3 V
One-minute test voltage between primary and secondary:
3 kV up to 600/√3 V
According to IEC 60044-2
