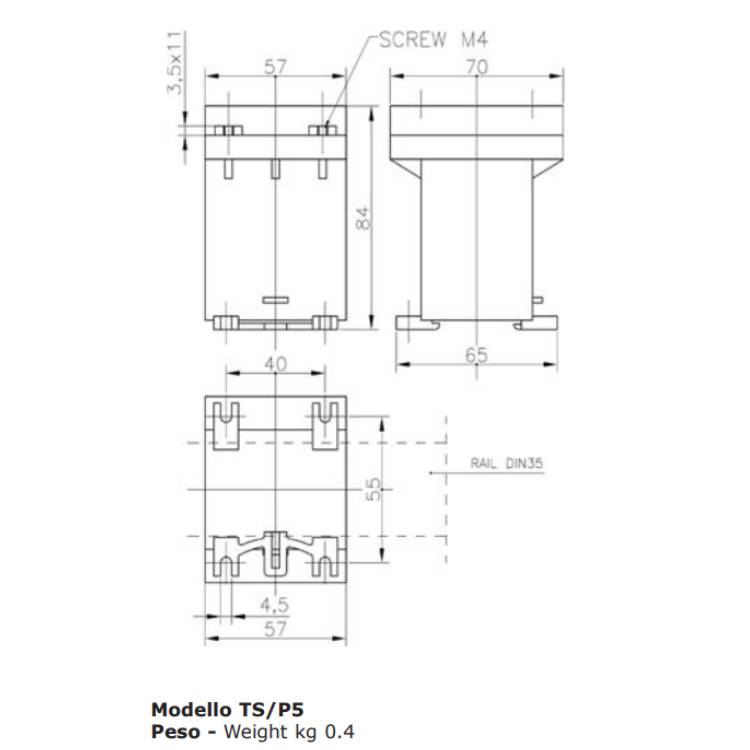

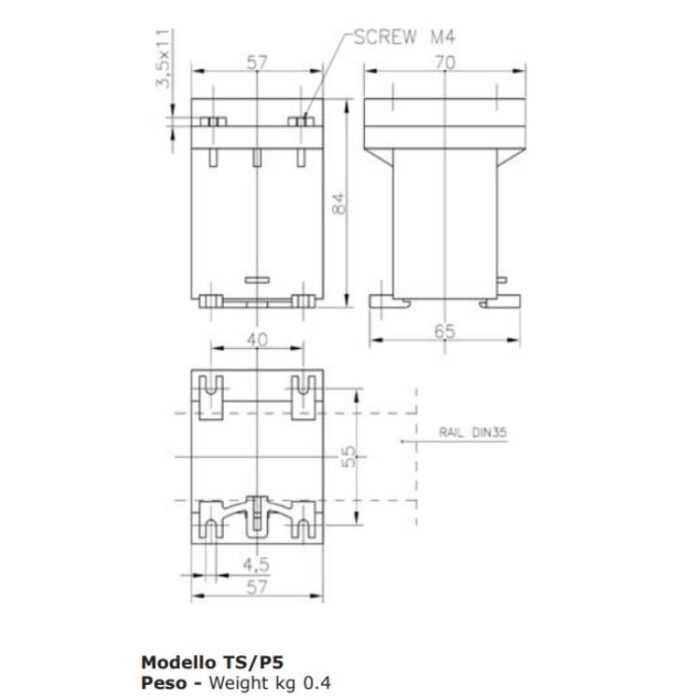

TS P5 – Summating and ratio-correction current transformers

Primary current 0.5 to 20 A.

Scheda tecnica prodotto

CHARACTERISTIC

  • Dry-insulating in air
  • Thermoplastic material case for TS/P5,
  • screw mounting or snap-on to rail to 35 mm DIN
  • Frequency 50 ÷ 60 Hz
  • Rated secondary current 5 A
  • Rated continuos thermal current 1.2 ln
  • Highest system voltage 0.72 kV
  • One-minute power frequency test voltage 3 kV
  • Selfconsumption: 3 VA for TS/P5
  • According to CEI Standard and IEC Recommendations
