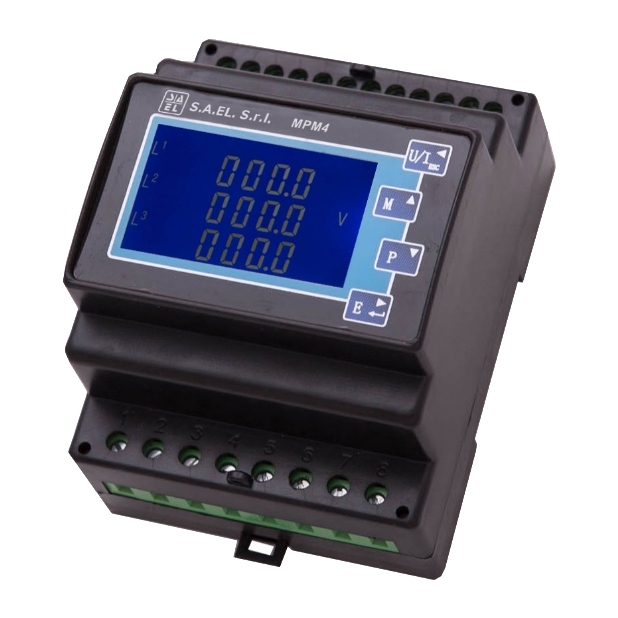

Network analyzers MPM4, suitable for use in single‐phase and three‐phase systems, in LV and MV, 3 or 4 wires (even in presence of distorted waveforms), visualize the measurements of the main electrical characteristics of power distribution network. The visualization of the measured variables (19 variables) is performed through the use of a high efficiency backlighted LCD display with wide viewing angle, thus ensuring the simultaneous reading of multiple variables. In addition to instantaneous measures, the network analyzer MPM4 displays the minimum and maximum peak and the average value of currents, voltages and powers as well as harmonic
distortion (2nd ‐ 60th).
Thanks to the fully programmable voltmetric and amperometric ratios, the electrical measure are expressed directly in their respective units.
Network analyzers MPM4 integrate into a single instrument functions of voltmeters, ammeters, frequency meters, power factor meters, wattmeters, varmeters, energy meters. This ensure a considerable economic savings and the reduction of space and installation time. MPM4 network analyzers are supplied with a serial output RS485 Modbus, 2 pulse outputs for remote measurement of active and reactive energy.
