IT’S HANDY AND READY

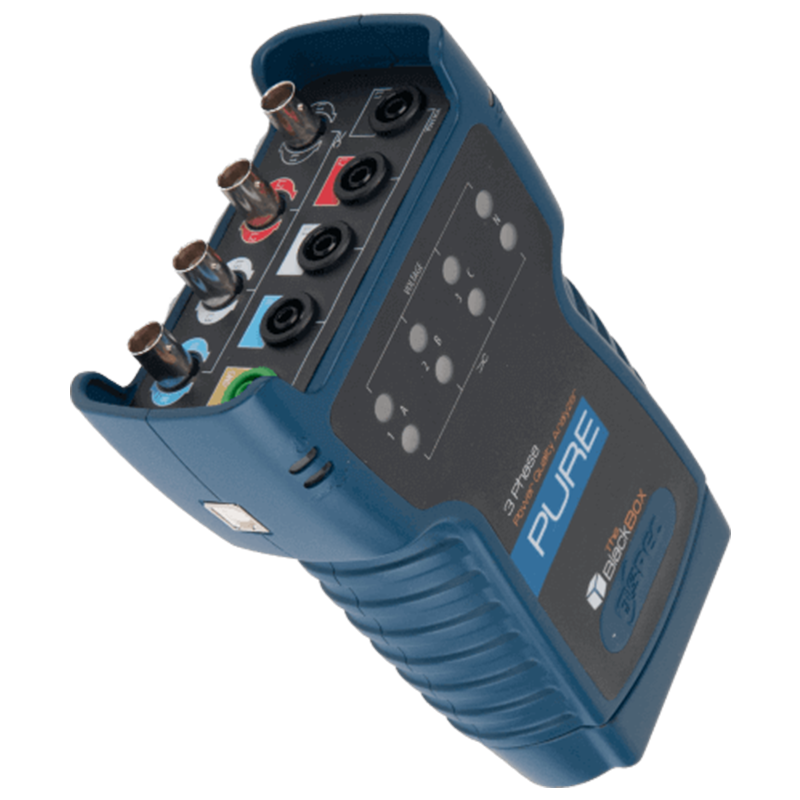

When using the Pure BlackBox, any installation errors such as a wrong phase order can be fixed during post- processing.
The Pure BlackBox includes a ride through super capacitors technology to enable continuous
recording during short supply interruptions. Power quality post recording processing and analysis
are available using the free SCADA Sapphire Express Edition software. Use it via drag and drop of recorded data for immediate analysis, PQ trending, events and reports.
Recorded information are saved in a non-volatile memory SD card which can be accessed as a standard external memory either via the device USB slot connected to a PC, or by inserting the SD card in a reader connected to a PC.
CHARACTERISTIC
- Continuous Waveform recording at 256 Sample/Cycle
- Class A devices IEC 61000-4-30
- Configuration FREE Device
- Fast USB connectivity to PC
- SD card slot hot swap
- Optional battery bank and communication extension for remote data collection over LAN network, wireless Wi-Fi or cellular communication
- IP40 for rugged environments
- Lightweight, hand-held portable PQ recorder
- Easy to use
- Two- sided mounting clip for convenient installation of a din rail, magnet or nail mounting.
