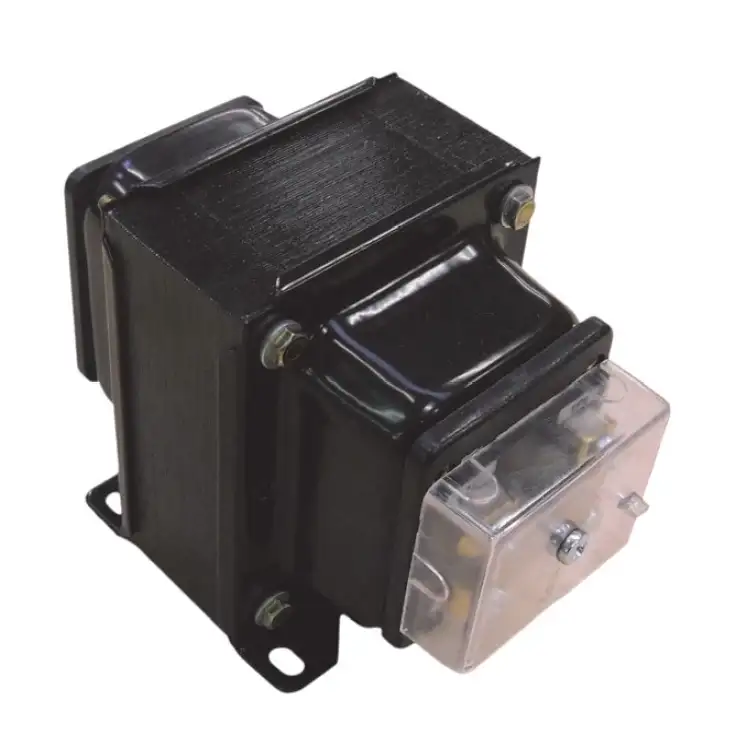

TS1 – Summating and ratio-correction current transformers

For more information download datasheet

Scheda tecnica prodotto

CHARACTERISTIC

  • Rated short-time thermal current (Ith) 40/1 In/s
  • Insulation levels 0,72/3 kV r.m.s.
  • Rated continuous thermal current 1,2 In
  • Rated frequency 50 ÷ 60 Hz
  • Self consumption 8 VA
  • Weight (about) 3 kg
  • Protection degree IP20
  • Working temperature -10 ÷ +70 °C
  • Storage temperature -20 ÷ +80 °C
  • According to IEC 60044-1 & IEC 61869-2 standards
  • Dry insulation
  • Metallic case execution
  • Supplied with wall mounting pins
  • Other ratios on request
  • Available with UTF sealable terminal cover
  • For Indoor use
