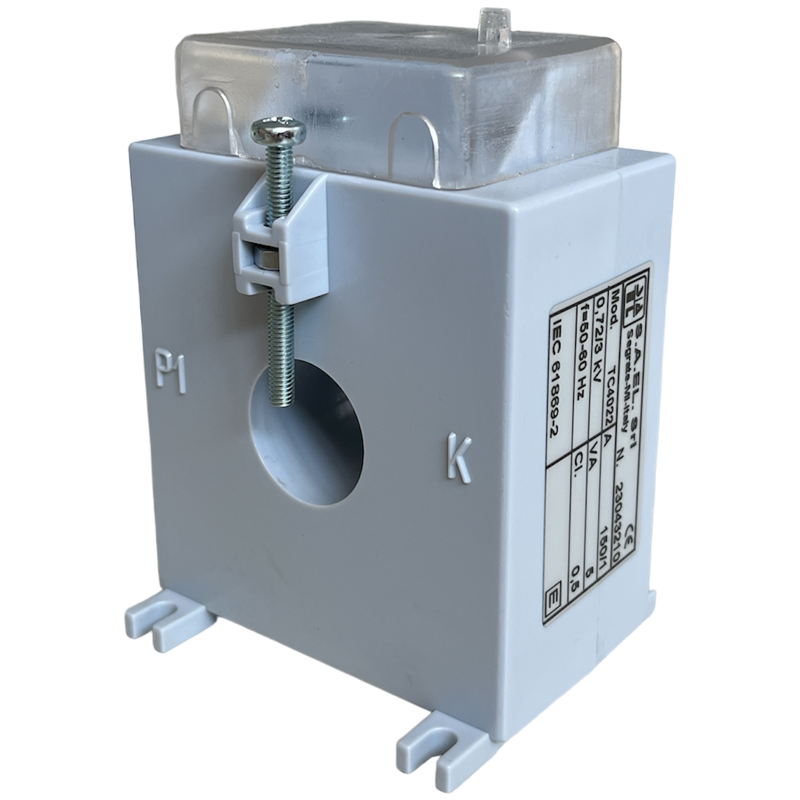

TC 4022 – Passing busbar current transformers

Primary current 40 to 250 A.

Scheda tecnica prodotto

CHARACTERISTIC

  • Rated short-time thermal current (Ith) 100/1 In/s Max 40kA
  • Insulation levels 0,72/3 kV r.m.s
  • Rated frequency 50 ÷ 60Hz
  • Primary current 40 ÷ 250A
  • Rated secondary current 5 – 1A
  • Weight (about) 0,5Kg
  • Protection degree IP20
  • Working temperature -10 ÷ +70°C
  • Storage temperature -20 ÷ +80°C
  • Class on request 0,2 / 0,2S
