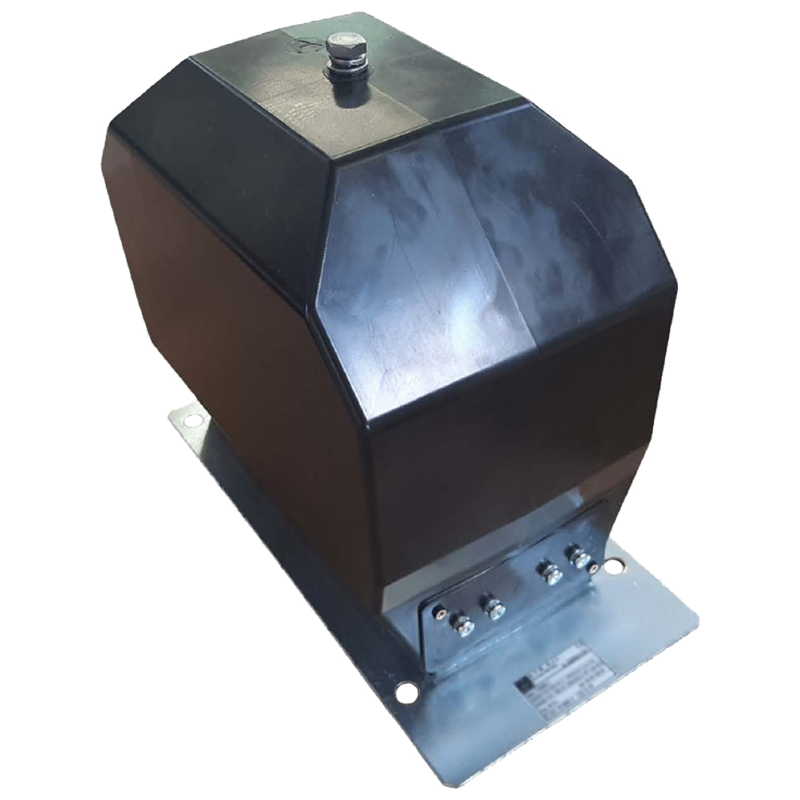

TVM-24

Per maggiori informazioni scaricare il pdf.

Scheda tecnica prodotto

CHARACTERISTIC

  • Insulation levels up to 24/50/125 kV
  • Rated frequency 50 ÷ 60 Hz
  • Rated primary voltage 24000:√3 V
  • Rated secondary voltage 100:√3-100:3 V
  • Voltage factor 1,9/8h
  • Burden 10-150VA
  • Measure / protection class 0,2 – 0,5 – 1 – 3 / 3P – 6P
  • Weight 33Kg
  • Protection degree IP65
  • Working temperature -5 ÷ +40°C
  • Storage temperature -10 ÷ +50 °C
