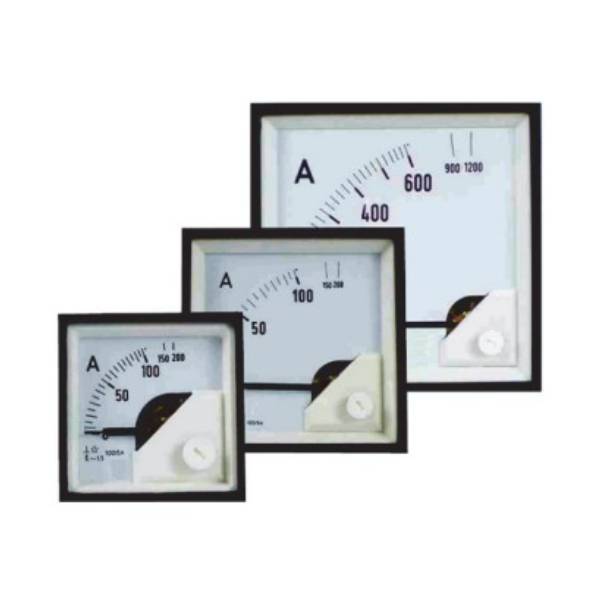

AC moving iron ammeters, 90° interchangeable scale

For more informations download datasheet.

Scheda tecnica prodotto

CHARACTERISTIC

  • Accuracy ± 1.5 % of full scale value
  • Self‐consumption 1 VA approx. (range 5 A)
  • Insulation reference voltage 0.6 kV
  • Test voltage 2 kV (1’ at 50 Hz)
  • Operating frequency 45 ÷ 65 Hz
  • Continuous overload 1,2 In
  • Istantaneous overload 10 In
  • Operating temperature ‐25°C ÷ +50°C
  • Storage temperature ‐40°C ÷ +80°C
  • Protection for housing IP52
  • Protection for terminals IP00 without terminals cover / IP20 with terminals cover
  • Manufactured according to CEI, IEC, DIN, VDE
